Visualization

Camera Modules and Instruments

Below are a list of visualization functions and examples and examples for visualzing camera modules and instruments.

scanning.visualization.plot_module(mod, mode=None, path=None, show_plot=True)

Plot the pixel positions and default polarizations of a given module.

Parameters

• mod (Module) – A Module object.

• mode (str or None, default None) – None for just the pixel positions. ‘pol’ to include default orientations. ‘rhomubs’ to include rhombus info. ‘wafer’ to include wafer info.

• path (str or None, default None) – If not None, saves the image to the file path.

• show_plot (bool, default True) – Whether to display the resulting figure.

scanning.visualization.instrument_config(instrument, path=None, show_plot=True)

Save a plot of the instrument configuration.

Parameters

• instrument (Instrument) – An Instrument object.

• path (str or None, default None) – If not None, saves the image to the file path.

• show_plot (bool, default True) – Whether to display the resulting figure.

Scan Patterns

Below are a list of visualization functions and examples for visualzing scan patterns.

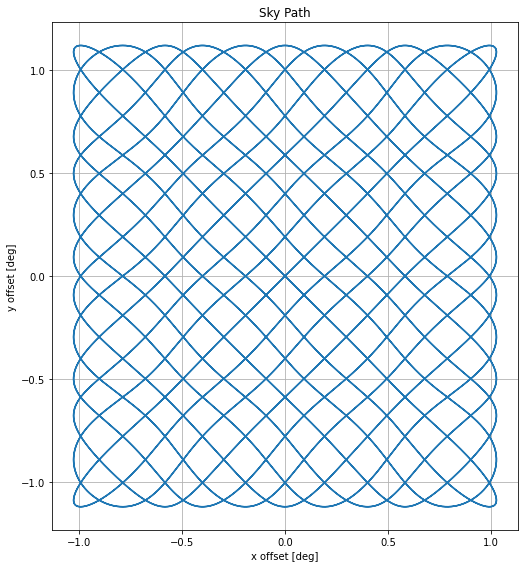

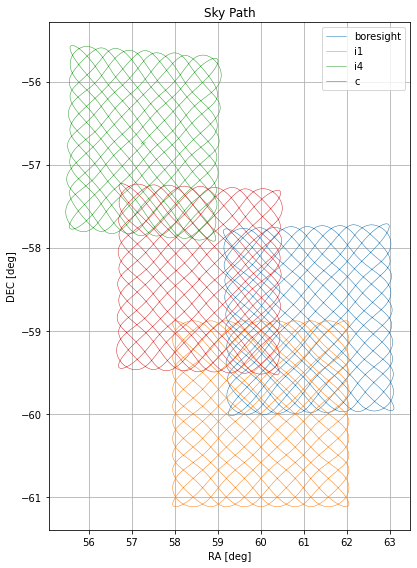

scanning.visualization.sky_path(pattern, module=None, path=None, show_plot=True)

Trace the path of the pattern on the sky.

Parameters

• pattern (SkyPattern or TelescopePattern) – If SkyPattern object, trace the path in x and y offsets. If TelescopePattern object, trace the path in RA/DEC.

• module (str or two-tuple or [list of str or two-tuple] or None, default None) – Only applicable if pattern is TelescopePattern. Trace the paths of the listed modules/location. If None, use boresight. | 1. string indicating a module name in the instrument e.g. ‘SFH’ | 2. string indicating one of the default slots in the instrument e.g. ‘c’, ‘i1’ | 3. tuple of (distance, theta) indicating module’s offset from the center of the instrument, default unit deg

• path (str or None, default None) – If not None, saves the image to the file path.

• show_plot (bool, default True) – Whether to display the resulting figure.

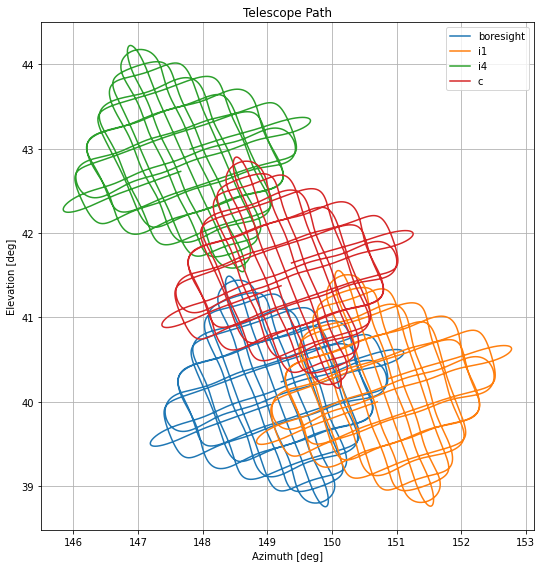

scanning.visualization.telescope_path(telescope_pattern, module=None, path=None, show_plot=True)

Trace the path of the pattern in AZ/EL.

Parameters

• pattern (TelescopePattern) – A TelescopePattern object.

• module (str or two-tuple or [list of str or two-tuple] or None, default None) – Trace the paths of the listed modules/location. If None, use boresight. | 1. string indicating a module name in the instrument e.g. ‘SFH’ | 2. string indicating one of the default slots in the instrument e.g. ‘c’, ‘i1’ | 3. tuple of (distance, theta) indicating module’s offset from the center of the instrument, default unit deg

• path (str or None, default None) – If not None, saves the image to the file path.

• show_plot (bool, default True) – Whether to display the resulting figure.

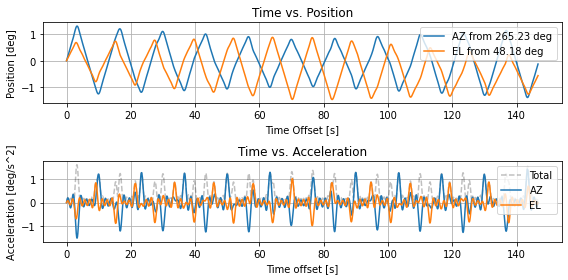

scanning.visualization.telescope_kinematics(telescope_pattern, module=None, plots=['coord', 'vel', 'acc', 'jerk'], path=None, show_plot=True)

Plot time vs. azimuthal and elevation kinematics.

Parameters

• pattern (TelescopePattern) – A TelescopePattern object.

• module (str or two-tuple or None, default None) – Select the module to use. If None, use boresight, otherwise: | 1. string indicating a module name in the instrument e.g. ‘SFH’ | 2. string indicating one of the default slots in the instrument e.g. ‘c’, ‘i1’ | 3. tuple of (distance, theta) indicating module’s offset from the center of the instrument, default unit deg

• plots (list of str, default ['coord', 'vel', 'acc', 'jerk']) – List of which time plots to include. By default, includes all.

• path (str or None, default None) – If not None, saves the image to the file path.

• show_plot (bool, default True) – Whether to display the resulting figure.

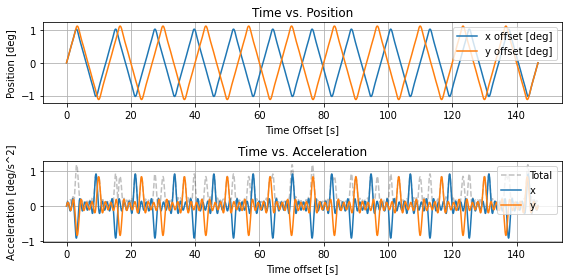

scanning.visualization.sky_kinematics(pattern, module=None, plots=['coord', 'vel', 'acc', 'jerk'], path=None, show_plot=True)

Plot time vs. x and y kinematics.

Parameters

• pattern (SkyPattern or TelescopePattern) – A SkyPattern or TelescopePattern object.

• module (str or two-tuple or None, default None) – Select the module to use. If None, use boresight, otherwise: | 1. string indicating a module name in the instrument e.g. ‘SFH’ | 2. string indicating one of the default slots in the instrument e.g. ‘c’, ‘i1’ | 3. tuple of (distance, theta) indicating module’s offset from the center of the instrument, default unit deg

• plots (list of str, default ['coord', 'vel', 'acc', 'jerk']) – List of which time plots to include. By default, includes all.

• path (str or None, default None) – If not None, saves the image to the file path.

• show_plot (bool, default True) – Whether to display the resulting figure.

Simulations

Below are a list of visualization functions and examples for visualzing simulation outputs.

scanning.visualization.hitmap(sim, convolve=True, norm_time=False, kept_hits=True, removed_hits=False, total_hits=False, path=None, show_plot=True, with_rot0=True)

Get a hitmap.

Parameters

• sim (Simulation) – A simulation object.

• convolve (bool; default True) – Whether to convolve the hitmap.

• norm_time (bool; default False) – True for hits/px per total scan duration. False for hits/px.

• total_hits (kept_hits removed_hits) – Whether to plot seperate hitmaps for kept/rem/total hits (True) or not (Fal`se). If an integer is passed, the corresponding plot will show, with the color bar maximum set to this interger.

• with_rot0 (bool; default True) – Include initial field rotation into side plot of detector elements.

• path (str or None; default None) – If not None, saves the image to the file path.

• show_plot (bool; default True) – Whether to display the resulting figure.

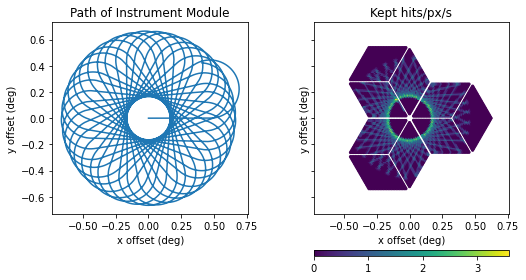

scanning.visualization.pxan_detector(sim, norm_pxan=True, norm_time=False, kept_hits=True, removed_hits=False, total_hits=False, path=None, show_plot=True)

Get a hitmap of the number of hits per detector element on a pixel on the sky (specified in pxan_list or pxan_lim).

Parameters

• sim (Simulation) – A simulation object.

• norm_pxan (bool; default True) – Whether to average the hits by dividing the total hits by the number of pixels.

• norm_time (bool; default False) – True for hits/px per total scan duration. False for hits/px.

• total_hits (kept_hits removed_hits) – Whether to plot seperate hitmaps for kept/rem/total hits (True) or not (Fal`se). If an integer is passed, the corresponding plot will show, with the color bar maximum set to this interger.

• path (str or None; default None) – If not None, saves the image to the file path.

• show_plot (bool; default True) – Whether to display the resulting figure.

scanning.visualization.pxan_time(sim, bin=1, norm_pxan=True, norm_time=False, kept_hits=True, removed_hits=False, total_hits=False, path=None, show_plot=True)

Get a histogram of the number of hits per timestamp on a pixel on the sky (specified in pxan_list or pxan_lim).

Parameters

• sim (Simulation) – A simulation object.

• bin (float, Quantity, or str; default 1, default unit seconds) – Desired time bin.

• norm_pxan (bool; default True) – Whether to average the hits by dividing the total hits by the number of pixels.

• norm_time (bool; default False) – True for hits/px per total scan duration. False for hits/px.

• total_hits (kept_hits removed_hits) – Whether to plot seperate hitmaps for kept/rem/total hits (True) or not (Fal`se).

• path (str or None; default None) – If not None, saves the image to the file path.

• show_plot (bool; default True) – Whether to display the resulting figure.

scanning.visualization.pxan_polarization(sim, norm_pxan=True, norm_time=False, kept_hits=True, removed_hits=False, total_hits=False, path=None, show_plot=True)

Get a histogram of how many times each detector element, grouped by their initial pixel positions, hit that region

Parameters

• sim (Simulation) – A simulation object.

• norm_pxan (bool; default True) – Whether to average the hits by dividing the total hits by the number of pixels.

• norm_time (bool; default False) – True for hits/px per total scan duration. False for hits/px.

• total_hits (kept_hits removed_hits) – Whether to plot seperate hitmaps for kept/rem/total hits (True) or not (Fal`se).

• path (str or None; default None) – If not None, saves the image to the file path.

• show_plot (bool; default True) – Whether to display the resulting figure.

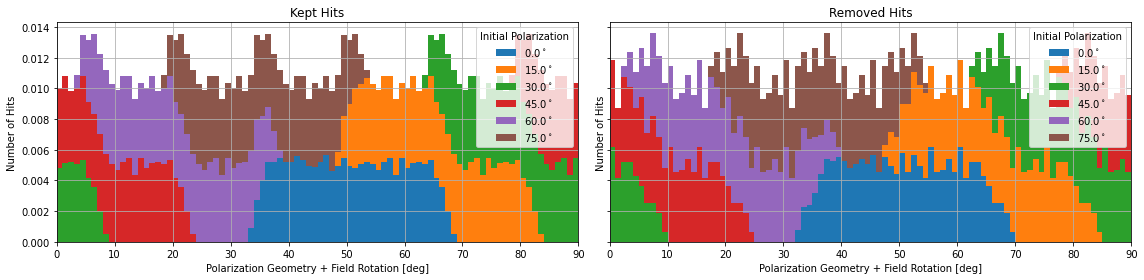

scanning.visualization.polarization_histogram(sim, kept_hits=True, removed_hits=False, total_hits=False, stacked=False, path=None, show_plot=True)

Get a histogram of which polarization geometries have been captured.

Parameters

simSimulation

A simulation object.

kept_hits removed_hits total_hitsbool; default True False False respectively

Whether to plot seperate hitmaps for kept/rem/total hits (True) or not (False`).

stackedbool; default False

Whether to display histogram as stacked bars (True) or overlaying bars (False).

pathstr or None; default None

If not None, saves the image to the file path.

show_plotbool; default True

Whether to display the resulting figure.

Observations

Below are a list of visualization functions and examples for visualzing Observation objects.

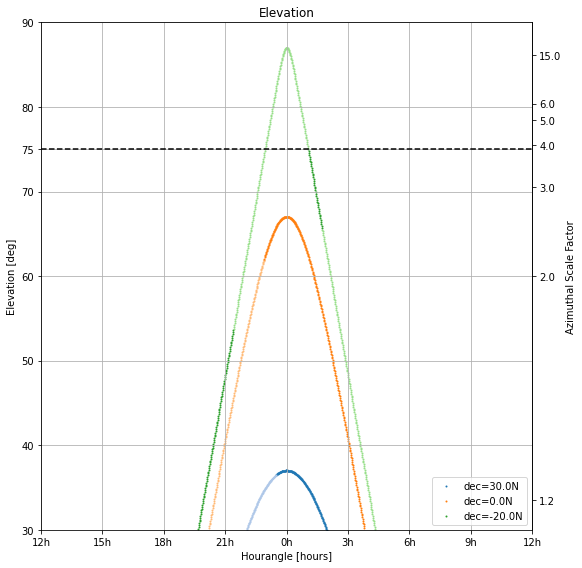

scanning.visualization.filter_observation(obs, plot='elevation', min_elev=30, max_elev=75, min_rot_rate=0, path=None, show_plot=True)

TODO

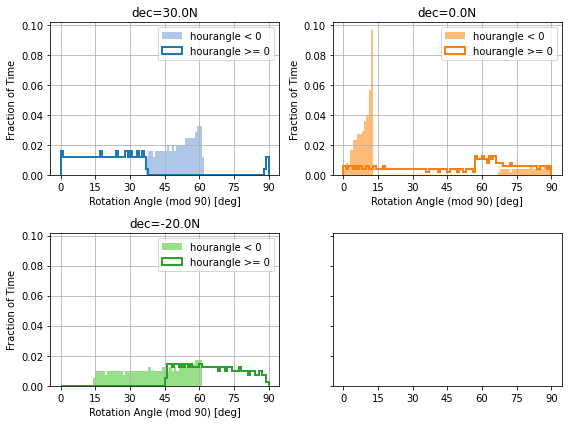

scanning.visualization.field_rotation_hist(obs, min_elev=30, max_elev=75, min_rot_rate=0, path=None, show_plot=True)

TODO
